Product Details
Brand Name: JM
Model Number: BV1032-MM
Payment & Shipping Terms
Name: |
Nickel Plated Brass Ball Valve |
Material: |
Brass |
Surface: |
Nickel |
Pressure: |
Max 25bar |
Temperature: |
-10-110 |
Threaded: |
F/F ISO 228/1 |
Name: |
Nickel Plated Brass Ball Valve |
Material: |
Brass |
Surface: |
Nickel |
Pressure: |
Max 25bar |
Temperature: |
-10-110 |
Threaded: |
F/F ISO 228/1 |

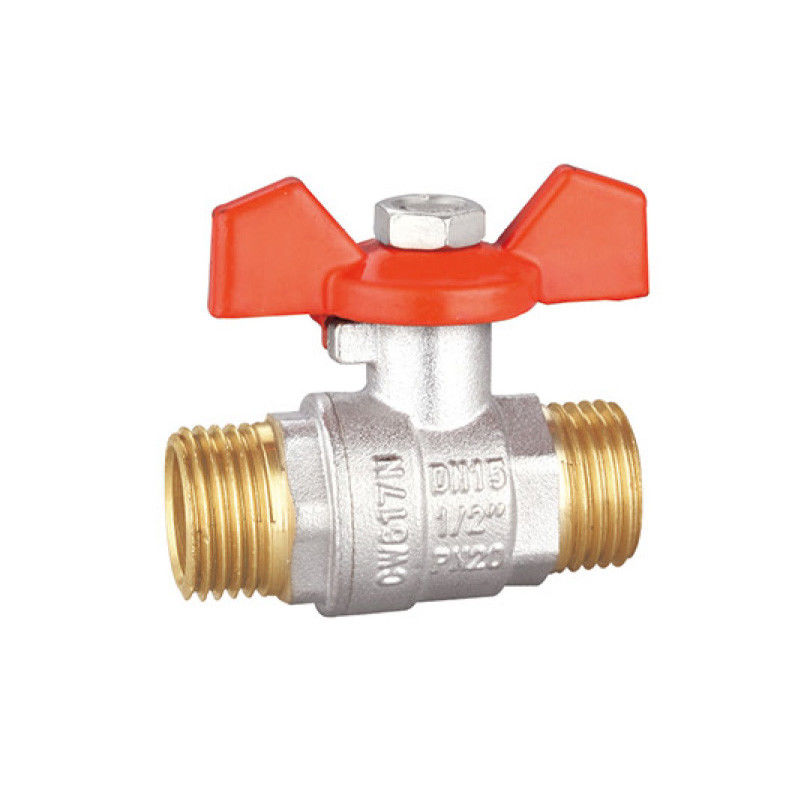

Brass Ball Valve BV1032-MM Sand Blast Nickel Plated Nominal Pressure:Max 25 bar Temperature:-10-110
Specification
Forged brass boby
Sand blast and nickel plated
Nominal Pressure:Max.16bar
Temperature:-10°C~110°C
Threaded ISO228/1
100% leak tested
| SIZE | A | B | C | D | E |
| 1/2" | 53 | 27 | 41 | 53.5 | 13.5 |
| 3/4" | 58.5 | 32 | 44 | 53.5 | 17 |
| SIZE | Weight(g) | Inner Box(mm) | Carton(mm) |
Qty per inner box |
Qty per carton |
| 1/2" | 135 | 17×11×6 | 36×25×19.5 | 12 | 144 |
| 3/4" | 175 | 17×13.5×7 | 36×28.5×22.5 | 10 | 120 |
