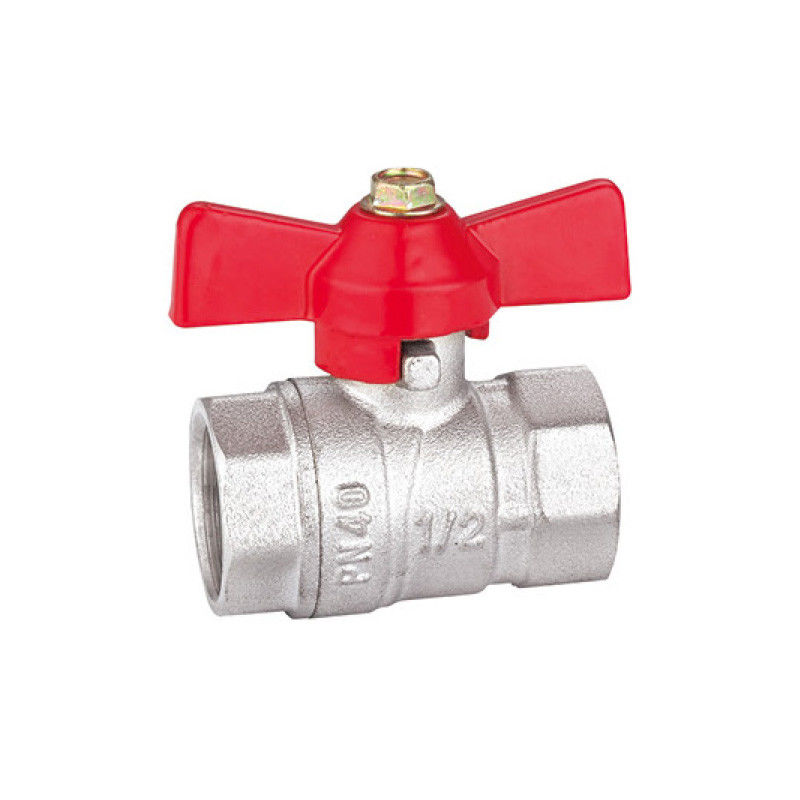

Forged Brass Ball Valve 1/2 Inch 3/4 Inch 100% Leak Tested

Product Details

Place of Origin: TAIZHOU ZHEJIANG

Brand Name: JM

Model Number: BV1045-FF

Payment & Shipping Terms

Minimum Order Quantity: 3000Pcs

Packaging Details: Xingnuo Package

Payment Terms: T/T

Get Best Price
Product Details
High Light:

Forged Brass Ball Valve

,

Brass Ball Valve 1/2 Inch

,

Brass Ball Valve 3/4

Working Temperature:
-10~120°C(14~248°F)
Threaded:
ISO228/1
Test:
100%leak Tested
Stem Material:
Brass
Nominal Pressure:
Max.25bar
Handle Material:
Aluminium
Brass Material:
HPB57-3
Processing Technic:
Sand Blast And Nickel Plate
Seal Material:
PTFE
Size:
1/4",3/8,1/2",3/4"
Name:
3/4 Brass Ball Valve
Working Temperature:
-10~120°C(14~248°F)
Threaded:
ISO228/1
Test:
100%leak Tested
Stem Material:
Brass
Nominal Pressure:
Max.25bar
Handle Material:
Aluminium
Brass Material:
HPB57-3
Processing Technic:
Sand Blast And Nickel Plate
Seal Material:
PTFE
Size:
1/4",3/8,1/2",3/4"
Name:
3/4 Brass Ball Valve
Product Description

BV1045-FF Brass Ball Valve Forged Brass Body Sand Blast And Nickel Plated

Brass BV1045-FF

Specification

  • Forged brass boby

  • Sand blast and nickel plated

  • Nominal Pressure:Max.16bar

  • Temperature:-10°C~110°C

  • Threaded ISO228/1

  • 100% leak tested

  •

Dimensions
SIZE A B C D E
1/4" 39 22 33.5 46 10
3/8" 39 22 33.5 46 10
1/2“ 45 27 39 52 13
3/4” 51.5 34 42.5 52 18
packaging
SIZE Weight(g) Inner Box(mm) Carton(mm) Qty per inner box Qty per carton
1/4" 76 14.5×14.5×6 31.5×16.5×30 18 180
3/8" 70 14.5×14.5×6 31.5×15×30.5 18 180
1/2” 126 19×9.5×6.5 34×20.5×20.5 12 120
3/4” 181 21.5×13.5×7.5 39.5×23×28.5 12 120


Product Details

  • Brass Valve Body: High-density forging, no blister, no air holes, no leakages. Made by special high precision CNC machines.

  • Brass Bonnet: High-density forging, no blister, no air holes, no leakages. Made by special high precision CNC machines.

  • Ball Valve: Smooth and wear resisting, with good sealing performance.

  • Brass Valve Stem: Made of hot rolled brass, high tensile strength, good toughness, long-term use without deformation, fracture.

  • Handle: The handle is made of aluminium alloy by casting, professional surface painting, wear resisting and with anti-corrosion. Small appearance, flexible opening and closing when installed in various environments.

  • Ball Seat: Made by pure PTFE(polytetrafluoroethylene), with high elasticity and wear resistance, is not easy aging.

  • Stainless Steel Lock screw: Internal design of anti-loose, can be used for long time.

  • O-ring: made of imported raw material,special for gas, small friction coefficient, long service life and not easy to leak.

Reminding

  1. The thread, color of handle, materials, etc. can be customized.
  2.  Brass Ball Valve with Aluminium handle.
  3. Ball valves in yellow handle can be only used in all types of gas, town gas (1st famlily), natural gas (2nd family), and liquid gas (3rd family). They are not allowed to be used in any water and air systems.

Brass Ball Valve series

  • The brass ball valve is mainly used to cut off, distribute and change the medium flow direction. The ball valve designed as a V-shaped opening also has a good flow regulation function.
