OEM Brass Three Quarter Inch Ball Valve With Butterfly Handle

Name: OEM Brass Three Quarter Inch Ball Valve With Butterfly Handle
Brand: JM
SKU: BV1045-MF
Rating: 4.7 (102 reviews)

Product Details

Place of Origin: TAIZHOU ZHEJIANG

Brand Name: JM

Model Number: BV1045-MF

Payment & Shipping Terms

Minimum Order Quantity: 3000Pcs

Packaging Details: Package

Delivery Time: 30-40days

Payment Terms: T/T, L/C

Get Best Price

Product Details

Product Description

Product Details

High Light:
                                                                                                                                                                                                                                                                                                                                                                                                                Brass Three Quarter Inch Ball Valve, OEM Butterfly Handle Ball Valve, OEM Ball Valve With Butterfly Handle


Processing Technic:	Sand Blast And Nickel Plate	Test:	100％leak Tested
Nominal Pressure:	Max.25bar	Handle Material:	Aluminium
Threaded:	ISO228/1	Brass Material:	HPB57-3
Working Temperature:	-10~120°C（14～248°F）	Seal Material:	PTFE
Size:	1/4",3/8,1/2",3/4"	Accept:	OEM
Name:	3 4 Brass Ball Valve

Processing Technic:	Sand Blast And Nickel Plate
Test:	100％leak Tested
Nominal Pressure:	Max.25bar
Handle Material:	Aluminium
Threaded:	ISO228/1
Brass Material:	HPB57-3
Working Temperature:	-10~120°C（14～248°F）
Seal Material:	PTFE
Size:	1/4",3/8,1/2",3/4"
Accept:	OEM
Name:	3 4 Brass Ball Valve

Product Description

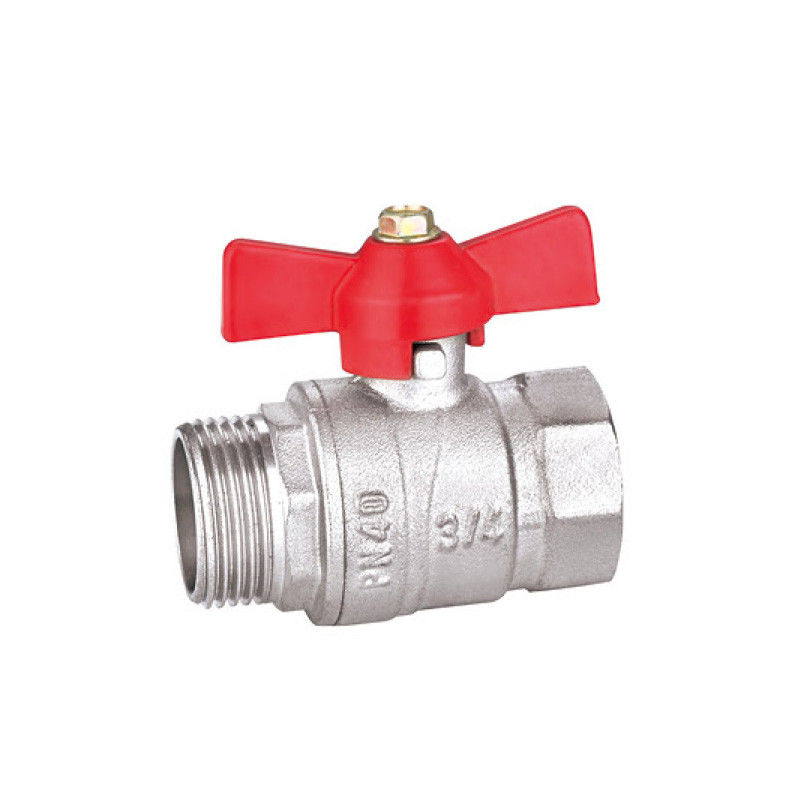

BV1045-MF Brass Ball Valve / Brass Body/Sand Blast/Nickel Plated With Butterfly Handle

Brass Ball Valve BV1045-MF

Specification

Forged brass boby
Sand blast and nickel plated
Nominal Pressure:Max.16bar
Temperature:-10°C~110°C
Threaded ISO228/1
100% leak tested

Dimensions

SIZE	A	B	C	D	E
1/4"	46	22	33	46	10
3/8"	46	22	33	46	10
1/2“	52.5	27	39	52	13
3/4”	58	34	42.5	52	18

packing

SIZE	Weight(g)	Inner Box(mm)	Carton(mm)	Qty per inner box	Qty per carton
1/4"	85	14.5×14.5×6	31.5×15.5×30.5	18	180
3/8"	75	14.5×14.5×6	31.5×15×30.5	18	180
1/2”	135	19×9.5×6.5	34×20.5×20.5	12	120
3/4”	187	21.5×13.5×7.5	39.5×23×28.5	12	120

Product Details

Brass Valve Body: High-density forging, no blister, no air holes, no leakages. Made by special high precision CNC machines.
Brass Bonnet: High-density forging, no blister, no air holes, no leakages. Made by special high precision CNC machines.
Ball Valve: Smooth and wear resisting, with good sealing performance.
Brass Valve Stem: Made of hot rolled brass, high tensile strength, good toughness, long-term use without deformation, fracture.
Handle: The handle is made of aluminium alloy by casting, professional surface painting, wear resisting and with anti-corrosion. Small appearance, flexible opening and closing when installed in various environments.
Ball Seat: Made by pure PTFE(polytetrafluoroethylene), with high elasticity and wear resistance, is not easy aging.
Stainless Steel Lock screw: Internal design of anti-loose, can be used for long time.
O-ring: made of imported raw material,special for gas, small friction coefficient, long service life and not easy to leak.

Reminding

The thread, color of handle, materials, etc. can be customized.
Brass Ball Valve with Aluminium handle.
Ball valves in yellow handle can be only used in all types of gas, town gas (1st famlily), natural gas (2nd family), and liquid gas (3rd family). They are not allowed to be used in any water and air systems.

Brass Ball Valve series

The brass ball valve is mainly used to cut off, distribute and change the medium flow direction. The ball valve designed as a V-shaped opening also has a good flow regulation function.

Compant Profiles

Taizhou Xingnuo Technology Co., Ltd., formerly known as Yuhuan precision machinery factory, was founded in 1992 with a registered capital of 14.53 million yuan and an area of 13000 square meters. Since its establishment, the company has been engaged in the development and production of brass. The company has accumulated rich production experience It has created a group of professional technicians and established a complete set of product quality assurance system. The company has become a professional manufacturer integrating design, development and production.

The company mainly produces more than a thousand varieties of water separators, valve series, embedded pipe fittings series, heating radiator series, HVAC and other series, mainly made of brass and stainless steel. It has more than 800 sets of production equipment and more than 50 sets of testing equipment and other professional development and production of casting finishing equipment.

Xingnuo regards product quality as the life of the enterprise, and earnestly implements the quality policy of "pragmatic, precise manufacturing, continuous improvement and customer satisfaction", Modern quality management methods and standardized testing procedures are adopted to ensure reliable quality. Xingnuo has a design studio, a laboratory center and a testing center. Our products are exported to Russia, the United States, Germany, Australia, Canada and other countries and regions, and have formed regional and long-term cooperation with many domestic listed companies and distributors. We are your reliable business partner.
