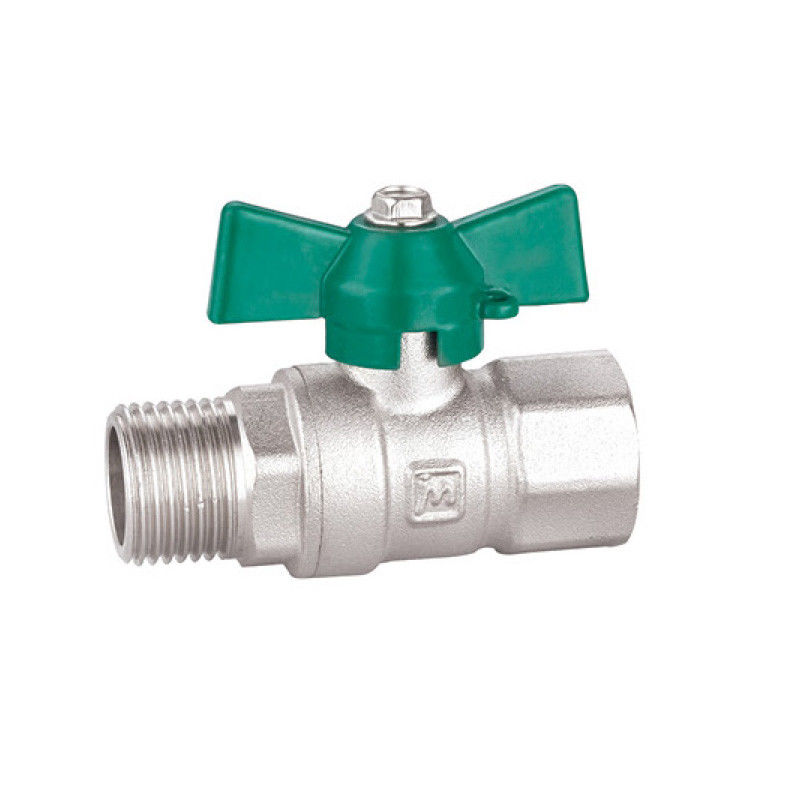

16bar Brass Threaded Ball Valve , Forged Butterfly Handle Valve
Product Details:
| Place of Origin: | TAIZHOU ZHEJIANG |
| Brand Name: | JM |
| Model Number: | BV1047 |
|
Detail Information |
|||
| Name: | Butterfly Handle Ball Valve | Material: | Brass |
|---|---|---|---|
| Size: | 1/2,3/4 | Pressfure: | Max25bar |
| Temperature: | -10-110 | Threaded: | M/f ISO 228/1 |
| Surface: | Nickel | ||
| High Light: | 16bar Brass Threaded Ball Valve,Forged Butterfly Handle Valve |
||
Product Description
Brass Ball Valve BV1047 Forged Brass Body Sand Blast Nickel Plated Pressure:Max 25bar
Specification
-
Forged brass boby
-
Sand blast and nickel plated
-
Nominal Pressure:Max.16bar
-
Temperature:-10°C~110°C
-
Threaded ISO228/1
-
100% leak tested
-
Dimensions
| SIZE | A | B | C | D | E |
| 1/2” | 65.5 | 27 | 38.5 | 49 | 12 |
| 3/4” | 75 | 35 | 41 | 49 | 18 |
packaging
| SIZE | Weight(g) | Inner Box(mm) | Carton(mm) |
Qty per inner box |
Qty per carton |
| 1/2” | 157 | 14.5×14.5×6 | 34.5×16×31.5 | 10 | 100 |
| 3/4” | 248 | 14.5×14.5×6 | 34.5×16×31.5 | 10 | 100 |
