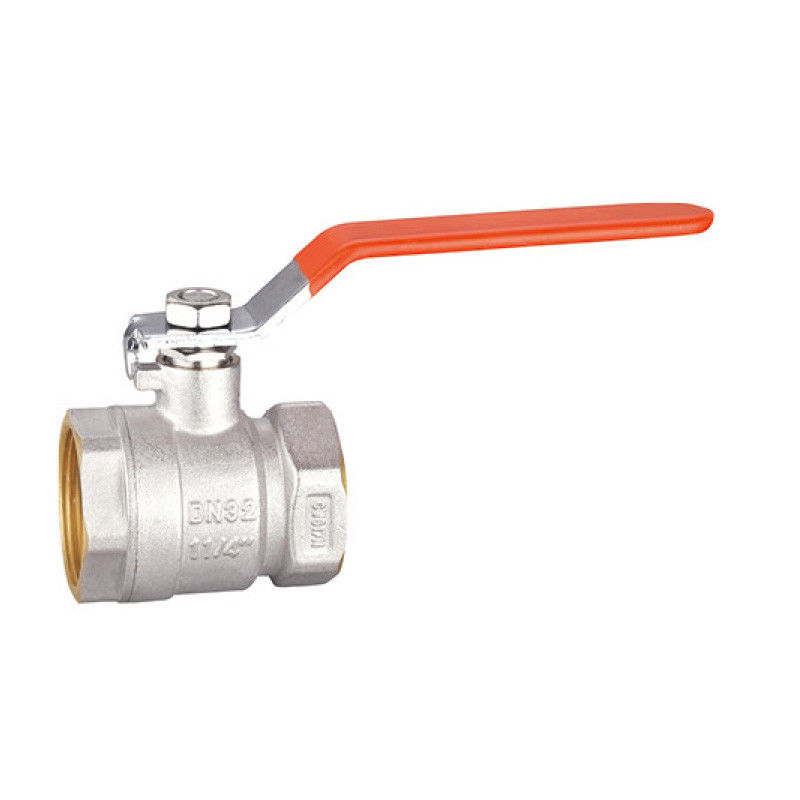

Nickel Brass Body Ball Valve Threaded BV1033-FF For Water Gas Oil
Product Details:
Place of Origin: | TAIZHOU ZHEJIANG |
Brand Name: | jm |
Model Number: | BV1033-FF |
Detail Information |
|||
Name: | Brass Body Ball Valve | Material: | Brass |
---|---|---|---|
Temperature: | -10-110 | Pressure: | Max25bar |
Technology: | Forged | Surface: | Nickel |
Threaded: | F/f Iso228/1 | ||
High Light: | Nickel Brass Body Ball Valve,Water Brass Body Ball Valve,Nickel Ball Valve Threaded |
Product Description
Brass Ball Valve BV1033-FF Forged Brass Body Nickel Plated Prssure:Max25bar Temperature:-10-110
Specification
-
Forged brass boby
-
Sand blast and nickel plated
-
Nominal Pressure:Max.16bar
-
Temperature:-10°C~110°C
-
Threaded ISO228/1
-
100% leak tested
-
Dimensions
SIZE | A | B | C | D | E |
1/2" | 45 | 27 | 48 | 97 | 13.5 |
3/4" | 48.5 | 32 | 52 | 97 | 17 |
1“ | 60 | 41 | 60 | 109 | 22.5 |
11/4” | 68.5 | 51.5 | 68.5 | 140 | 29 |
11/2” | 79.5 | 60.5 | 71 | 140 | 35 |
2” | 93.5 | 74 | 102 | 165 | 44.5 |
packaging
SIZE | Weight(g) | Inner Box(mm) | Carton(mm) |
Qty per inner box |
Qty per carton |
1/2" | 150 | 17×13.5×7 | 36×28.5×22.5 | 12 | 144 |
3/4" | 195 | 17×13.5×7 | 36×28.5×22.5 | 10 | 120 |
1” | 340 | 15×13×8 | 32×27.5×25.5 | 6 | 72 |
11/4” | 535 | 19×11×9.5 | 40×23.5×20.5 | 4 | 32 |
11/2” | 726 | 19.5×13×10.5 | 41×27.5×22.5 | 4 | 32 |
2” | 1133 | 22.5×13×8 | 42×27.5×24 | 2 | 20 |
