PN16 PN20 Brass Valve Pipe Connection T Handle Ball Valve

Name: PN16 PN20 Brass Valve Pipe Connection T Handle Ball Valve
Brand: Taizhou XingNuo
SKU: BV1060-MF
Rating: 4.7 (126 reviews)

Product Details

Place of Origin: Zhejiang Taizhou

Brand Name: Taizhou XingNuo

Model Number: BV1060-MF

Payment & Shipping Terms

Minimum Order Quantity: 5000Pcs

Packaging Details: Xingnuo Package

Payment Terms: T/T

Get Best Price

Product Details

Product Description

Product Details

High Light:
                                                                                                                                                                                                                                                                                                                                                                                                                Pipe Connection T Handle Valve, T Handle Ball Valve PN16, PN20 Brass Valve


Name:	T Handle Brass Ball Valve	Stem Material:	Brass
Working Temperature:	-10~120°C（14～248°F）	Threaded:	ISO228/1
Processing Technic:	Sand Blast And Nickel Plate	Test:	100％leak Tested
Handle Material:	Aluminium	Brass Material:	HPB57-3
Nominal Pressure:	Max.25bar	Seal Material:	PTFE
Size:	1/2"x16,3/4"x20

Name:	T Handle Brass Ball Valve
Stem Material:	Brass
Working Temperature:	-10~120°C（14～248°F）
Threaded:	ISO228/1
Processing Technic:	Sand Blast And Nickel Plate
Test:	100％leak Tested
Handle Material:	Aluminium
Brass Material:	HPB57-3
Nominal Pressure:	Max.25bar
Seal Material:	PTFE
Size:	1/2"x16,3/4"x20

Product Description

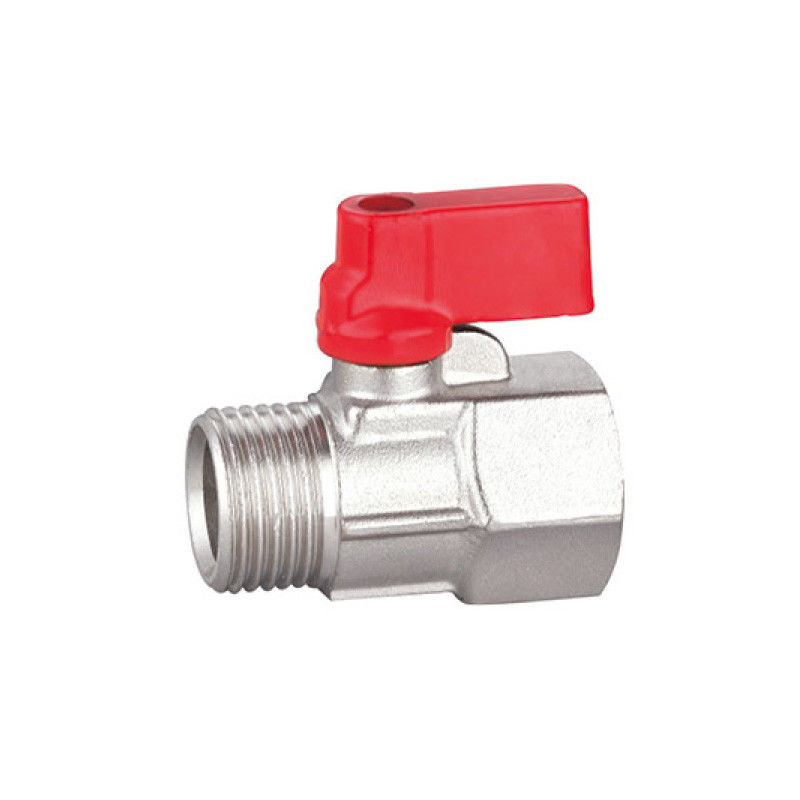

Brass BV1060-MF Male X Female 25 Mini Ball Valve With Nickle Plated

Brass BV1061-F Pipe Connection T Handle PN20 Ball Valves

Specification

forged brass body
sand blast and nickel plated
nominal pressure:Max.25bar(362.6psi)
temperature:-10~120°C(14～248°F)
threaded ISO228/1
100% leak tested

Technical Specification

Dimensions

SIZE

1/2"x16

30.5

3/4"x20

72.5

28.5

36.5

30.5

Product Details

Brass Valve Body: High-density forging, no blister, no air holes, no leakages. Made by special high precision CNC machines.
Brass Bonnet: High-density forging, no blister, no air holes, no leakages. Made by special high precision CNC machines.
Ball Valve: Smooth and wear resisting, with good sealing performance.
Brass Valve Stem: Made of hot rolled brass, high tensile strength, good toughness, long-term use without deformation, fracture.
Handle: The handle is made of aluminium alloy by casting, professional surface painting, wear resisting and with anti-corrosion. Small appearance, flexible opening and closing when installed in various environments.
Ball Seat: Made by pure PTFE(polytetrafluoroethylene), with high elasticity and wear resistance, is not easy aging.
Stainless Steel Lock screw: Internal design of anti-loose, can be used for long time.
O-ring: made of imported raw material,special for gas, small friction coefficient, long service life and not easy to leak.

Reminding

The thread, color of handle, materials, etc. can be customized.
Brass Ball Valve with Aluminium handle.
Ball valves in yellow handle can be only used in all types of gas, town gas (1st famlily), natural gas (2nd family), and liquid gas (3rd family). They are not allowed to be used in any water and air systems.

Certificates of BV-1062M

Brass Ball Valve series

The brass ball valve is mainly used to cut off, distribute and change the medium flow direction. The ball valve designed as a V-shaped opening also has a good flow regulation function.

Compant Profiles

Taizhou Xingnuo Technology Co., Ltd., formerly known as Yuhuan precision machinery factory, was founded in 1992 with a registered capital of 14.53 million yuan and an area of 13000 square meters. Since its establishment, the company has been engaged in the development and production of brass. The company has accumulated rich production experience It has created a group of professional technicians and established a complete set of product quality assurance system. The company has become a professional manufacturer integrating design, development and production.

The company mainly produces more than a thousand varieties of water separators, valve series, embedded pipe fittings series, heating radiator series, HVAC and other series, mainly made of brass and stainless steel. It has more than 800 sets of production equipment and more than 50 sets of testing equipment and other professional development and production of casting finishing equipment.

Xingnuo regards product quality as the life of the enterprise, and earnestly implements the quality policy of "pragmatic, precise manufacturing, continuous improvement and customer satisfaction", Modern quality management methods and standardized testing procedures are adopted to ensure reliable quality. Xingnuo has a design studio, a laboratory center and a testing center. Our products are exported to Russia, the United States, Germany, Australia, Canada and other countries and regions, and have formed regional and long-term cooperation with many domestic listed companies and distributors. We are your reliable business partner.

Packaging Details

SIZE

Weight(g)

Inner Box(mm)

Carton(mm)

Qty per

inner box

Qty per

carton

1/2"x16

152

17x12.5x5

36x26.5x16.5

144

3/4"x20

275

15x11.5x5.5

32x24.5x18
