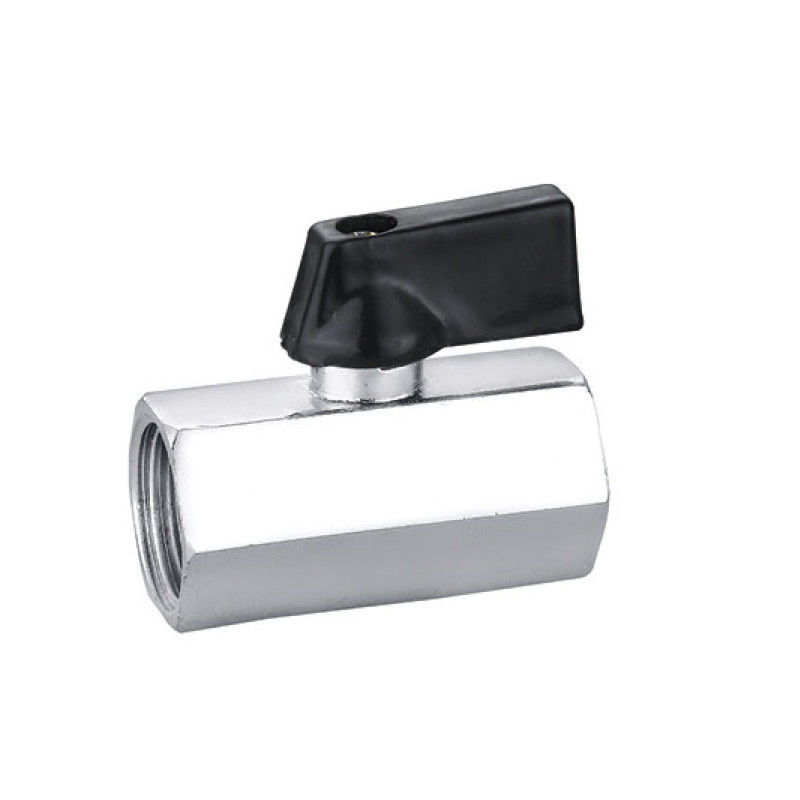

Brass BV1065-FF Female X Female Mini Ball Valves With Chrome Plated

Specification

• ​forged brass body
• sand blast and nickel plated
• nominal pressure:Max.25bar(362.6psi)
• temperature:-10~120°C(14～248°F)
• threaded  ISO228/1
• 100% leak tested

Technical Specification

Dimensions

Product Details

• Brass Valve Body: High-density forging, no blister, no air holes, no leakages. Made by special high precision CNC machines.

• Brass Bonnet: High-density forging, no blister, no air holes, no leakages. Made by special high precision CNC machines.

• Ball Valve: Smooth and wear resisting, with good sealing performance.

• Brass Valve Stem: Made of hot rolled brass, high tensile strength, good toughness, long-term use without deformation, fracture.

• Handle: The handle is made of aluminium alloy by casting, professional surface painting, wear resisting and with anti-corrosion. Small appearance, flexible opening and closing when installed in various environments.

• Ball Seat: Made by pure PTFE(polytetrafluoroethylene), with high elasticity and wear resistance, is not easy aging.

• Stainless Steel Lock screw: Internal design of anti-loose, can be used for long time.

• O-ring: made of imported raw material,special for gas, small friction coefficient, long service life and not easy to leak.

Reminding

1. The thread, color of handle, materials, etc. can be customized.
2.  Brass Ball Valve with Aluminium handle.
3. Ball valves in yellow handle can be only used in all types of gas, town gas (1st famlily), natural gas (2nd family), and liquid gas (3rd family). They are not allowed to be used in any water and air systems.

Certificates of BV-1065FF

Brass Ball Valve series

• The brass ball valve is mainly used to cut off, distribute and change the medium flow direction. The ball valve designed as a V-shaped opening also has a good flow regulation function.
