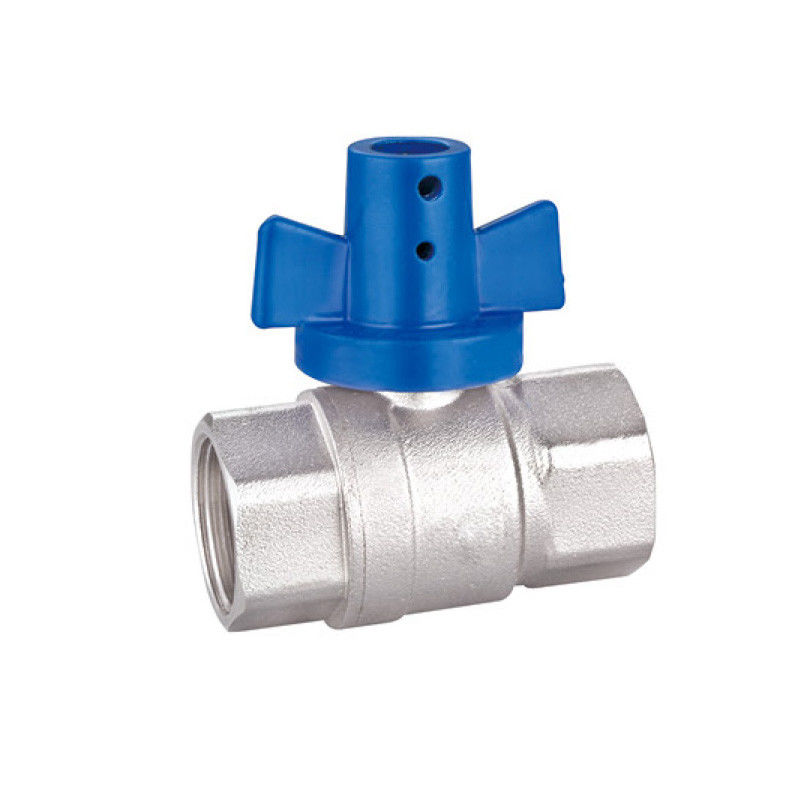

Lockable Brass Ball Valve BV1030-FF Nickel Plated Sand Blast
Product Details:
| Place of Origin: | taizhou zhejiang |
| Brand Name: | jm |
| Model Number: | bv1030-ff |
|
Detail Information |
|||
| Name: | Nickel Plated Brass Valve | Material: | Brass |
|---|---|---|---|
| Technolgy: | Forged | Sureface: | Nickel |
| Pressure: | Max25bar | Temperature: | -10-110 |
| Threaded: | F/f Iso228/1 | ||
| High Light: | Lockable Brass Ball Valve,Nickel Plated Brass Ball Valve,Brass Lockable Ball Valve |
||
Product Description
Brass Lock Valve BV1030-FF Nickel Plated Nominal Pressure:Max25bar Temperature:-10-110
Specification
-
Forged brass boby
-
Sand blast and nickel plated
-
Nominal Pressure:Max.16bar
-
Temperature:-10°C~110°C
-
Threaded ISO228/1
-
100% leak tested
-
Dimensions
| SIZE | A | B | C | D | E |
| 1/2" | 60 | 30.5 | 50 | 47.5 | 15 |
| 3/4" | 66 | 35.5 | 52.5 | 47.5 | 19 |
packaging
| SIZE | Weight(g) | Inner Box(mm) | Carton(mm) |
Qty per inner box |
Qty per carton |
| 1/2" | 206 | 17×14×8 | 41×29×18 | 10 | 100 |
| 3/4" | 257 | 19×14×8 | 33×29×20 | 10 | 80 |
