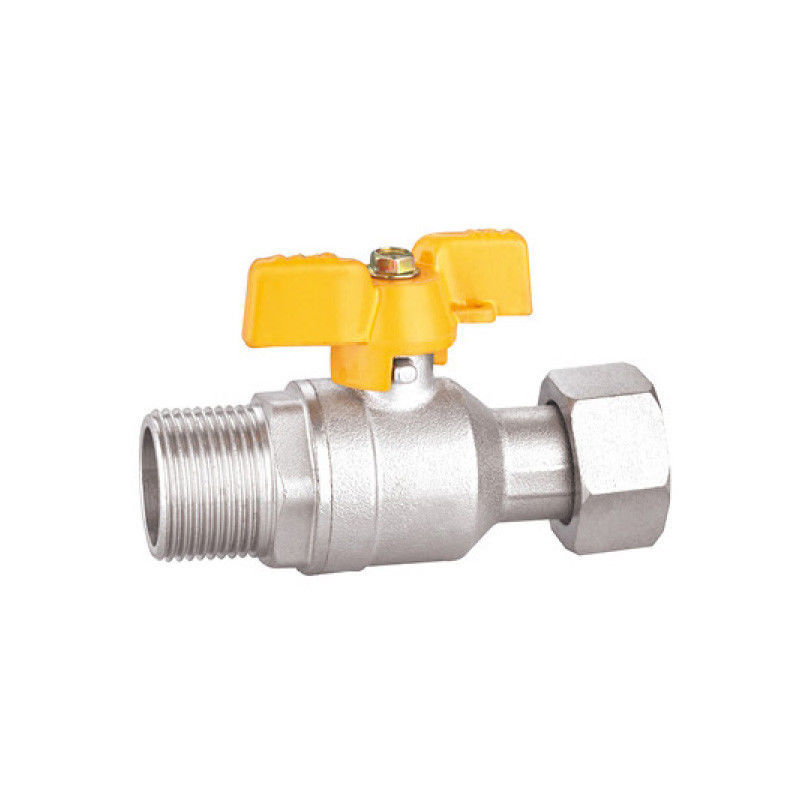

Forged Brass Ball Valve Butterfly Handle Manufacturers 100% Leak Tested
Product Details:
| Place of Origin: | TAIZHOU ZHEJIANG |
| Brand Name: | jm |
| Model Number: | bv1026-MF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3000 |
|---|
|
Detail Information |
|||
| Name: | 1/2 Brass Ball Valve Threaded | Marerial: | Brass |
|---|---|---|---|
| Sureface: | Nickel | Pressure: | Max25bar |
| Temperature: | -10-110 | Threaded: | F/F ISO228/1 |
| Teachnology: | Forged | ||
| High Light: | Forged Brass Ball Valve Manufacturers,Brass Ball Valve Butterfly Handle,Forged Ball Valve Butterfly Handle |
||
Product Description
Brass Gas Ball Valve BV1026-MF Sand Blast And Nickel Plated Nominal Pressure:Max25bar
Specification
-
Forged brass boby
-
Sand blast and nickel plated
-
Nominal Pressure:Max.16bar
-
Temperature:-10°C~110°C
-
Threaded ISO228/1
-
100% leak tested
-
Dimensions
| SIZE | A | B | C | D | E |
| 1/2"×3/4" | 71.5 | 30.5 | 38 | 53 | 15 |
| 3/4"×3/4" | 79.5 | 33.5 | 39.5 | 53 | 17 |
packaging
| SIZE | Weight(g) | Inner Box(mm) | Carton(mm) |
Qty per inner box |
Qty per carton |
| 1/2"×3/4" | 220 | 17.5×13.5×6 | 31×28×18.5 | 10 | 100 |
| 3/4"×3/4" | 260 | 17.5×17×17 | 35×29×18.5 | 10 | 80 |
