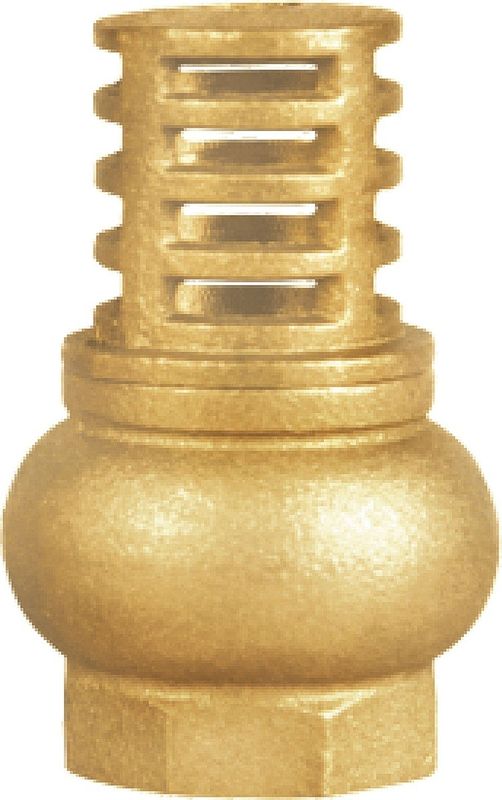

1 Inch 2 Inch 3 Inch 4 Inch Brass Foot Valve FV5001 Max25bar Forged Brass Body

Name: 1 Inch 2 Inch 3 Inch 4 Inch Brass Foot Valve FV5001 Max25bar Forged Brass Body
Brand: Taizhou XingNuo
SKU: FV5001
Rating: 4.7 (162 reviews)

Product Details

Place of Origin: Zhejiang Taizhou

Brand Name: Taizhou XingNuo

Model Number: FV5001

Payment & Shipping Terms

Minimum Order Quantity: 3000Pcs

Packaging Details: Xingnuo Package

Payment Terms: T/T

Get Best Price

Product Details

Product Description

Product Details

High Light:
                                                                                                                                                                                                                                                                                                                                                                                                                1 Inch Brass Foot Valve, 2 Inch Brass Foot Valve, 4 Inch Brass Foot Valve


Name:	2 In Brass Foot Valve	Stem Material:	Brass
Nominal Pressure:	Max.25bar	Working Temperature:	-10~120°C（14～248°F）
Threaded:	ISO228/1	Processing Technic:	Sand Blast And Nickel Plate
Test:	100％leak Tested	Handle Material:	Aluminium
Brass Material:	HPB57-3	Seal Material:	PTFE
Size:	1/2",3/4",1"1 1/4",11/2",2",2 1/2",3",4"

Name:	2 In Brass Foot Valve
Stem Material:	Brass
Nominal Pressure:	Max.25bar
Working Temperature:	-10~120°C（14～248°F）
Threaded:	ISO228/1
Processing Technic:	Sand Blast And Nickel Plate
Test:	100％leak Tested
Handle Material:	Aluminium
Brass Material:	HPB57-3
Seal Material:	PTFE
Size:	1/2",3/4",1"1 1/4",11/2",2",2 1/2",3",4"

Product Description

Brass Foot Valve FV5001 Nominal Pressure:Max25bar ,Temperature:-10-110

Brass Foot Valve FV5001

Specification

forged brass body
sand blast and nickel plated
nominal pressure:Max.25bar(362.6psi)
temperature:-10~120°C(14～248°F)
threaded ISO228/1
100% leak tested

Technical Specification

Dimensions

SIZE	A	C
1/2"	60	36
3/4"	69.5	42
1"	80.5	52
11/4"	85.5	58
11/2"	87.5	62
2	100	72.5
2 1/2"	123	94
3"	152	116
4"	195	148

Product Details

Brass Valve Body: High-density forging, no blister, no air holes, no leakages. Made by special high precision CNC machines.

Certificates of FV5001

Packaging Details

SIZE	Weight(g)	Inner Box(mm)	Carton(mm)	Qty per inner box	Qty per carton
1/2"	120	20.5X7X6	35X23X17	12	120
3/4"	180	16.5X13X8	42X35X15	9	90
1"	235	17X13X8.5	37x28x18.5	10	80
11 /4"	340	19X9.5X6.5	36X21.5X21.5	3	30
11/2"	430	19X9.5X6.5	36X21.5X21.5	3	30
2"	640	22.5X12.5X8	42.5X25X27.5	3	30
2 1/2"	1150	29X10X13	42X30.5X28	3	24
3"	1700	35.5X12X16.5	37X18X25.5	3	6
4"	3500	14.5X14.5X18.5	31X31X20	1	4

XX

Brass Ball Valve series

The brass ball valve is mainly used to cut off, distribute and change the medium flow direction. The ball valve designed as a V-shaped opening also has a good flow regulation function.

Compant Profiles

Taizhou Xingnuo Technology Co., Ltd., formerly known as Yuhuan precision machinery factory, was founded in 1992 with a registered capital of 14.53 million yuan and an area of 13000 square meters. Since its establishment, the company has been engaged in the development and production of brass. The company has accumulated rich production experience It has created a group of professional technicians and established a complete set of product quality assurance system. The company has become a professional manufacturer integrating design, development and production.

The company mainly produces more than a thousand varieties of water separators, valve series, embedded pipe fittings series, heating radiator series, HVAC and other series, mainly made of brass and stainless steel. It has more than 800 sets of production equipment and more than 50 sets of testing equipment and other professional development and production of casting finishing equipment.

Xingnuo regards product quality as the life of the enterprise, and earnestly implements the quality policy of "pragmatic, precise manufacturing, continuous improvement and customer satisfaction", Modern quality management methods and standardized testing procedures are adopted to ensure reliable quality. Xingnuo has a design studio, a laboratory center and a testing center. Our products are exported to Russia, the United States, Germany, Australia, Canada and other countries and regions, and have formed regional and long-term cooperation with many domestic listed companies and distributors. We are your reliable business partner.

Q&A

Q:How long is your delivery time?

Q:What is your MOQ?

Q:Can you accept OEM?
