Product Details
Payment & Shipping Terms
Minimum Order Quantity: 2000
Delivery Time: 30
Payment Terms: T/T
Name: |
Distribution Manifold |
Pipeline: |
2-10way |
Processing Technic: |
Sand Blast And Nickel Plate |
Seal Material: |
PTFE |
Threaded: |
ISO228/1 |
Feature: |
Durable |
Maximum Temperature: |
200°F |
Technology: |
Forged |
Normal Temperature: |
-10~110°C |
Valve Material: |
Brass |
Oem: |
Customized |
Test: |
100％leak Tested |
Material: |
Brass |
Applicable Temperature: |
-5℃~100℃ |
Valve Type: |
Ball Valve |
Temperature: |
-10-110 |
Valve Size: |
1/2 Inch |
Nominal Pressure: |
≤1.0Mpa |
Maximum Pressure: |
300 PSI |
Stem Material: |
Stainless Steel |
Name: |
Distribution Manifold |
Pipeline: |
2-10way |
Processing Technic: |
Sand Blast And Nickel Plate |
Seal Material: |
PTFE |
Threaded: |
ISO228/1 |
Feature: |
Durable |
Maximum Temperature: |
200°F |
Technology: |
Forged |
Normal Temperature: |
-10~110°C |
Valve Material: |
Brass |
Oem: |
Customized |
Test: |
100％leak Tested |
Material: |
Brass |
Applicable Temperature: |
-5℃~100℃ |
Valve Type: |
Ball Valve |
Temperature: |
-10-110 |
Valve Size: |
1/2 Inch |
Nominal Pressure: |
≤1.0Mpa |
Maximum Pressure: |
300 PSI |
Stem Material: |
Stainless Steel |

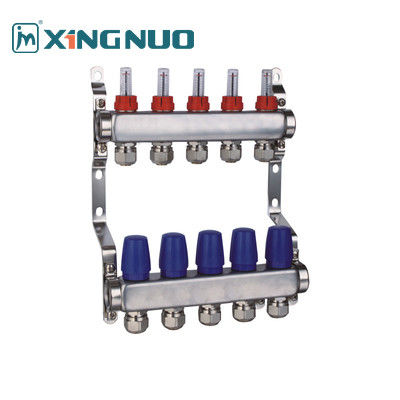

Distribution Manifold
Specification
Pipeline:2~10way
Nominal pressure: ≤1.0Mpa
Applicable medium: cold, hot water
Applicable temperature:-5℃~100℃
Material: Brass
| SIZE | A | B | L | 小包装 | 大包装 |
| 1"×3/4"-2 | 210 | 50 | 130 | 1 | 5 |
| 1"×3/4"-3 | 210 | 50 | 180 | 1 | 5 |
| 1"×3/4"-4 | 210 | 50 | 230 | 1 | 5 |
| 1"×3/4"-5 | 210 | 50 | 280 | 1 | 5 |
| 1"×3/4"-6 | 210 | 50 | 330 | 1 | 5 |
| 1"×3/4"-7 | 210 | 50 | 380 | 1 | 5 |
| 1"×3/4"-8 | 210 | 50 | 430 | 1 | 5 |
| 1"×3/4"-9 | 210 | 50 | 480 | 1 | 5 |
| 1"×3/4"-10 | 210 | 50 | 530 | 1 | 5 |
| 1"×3/4"-11 | 210 | 50 | 580 | 1 | 5 |
| 1"×3/4"-12 | 210 | 50 | 630 | 1 | 5 |
1. The water separator is constructed from high-quality stainless steel 304, ensuring exceptional durability and resistance to corrosion. This material choice not only enhances the longevity of the product but also maintains its structural integrity under various environmental conditions. The manifold features a nickel-plated finish, which adds an extra layer of protection against wear and tear, making it suitable for both residential and industrial applications.
2. Designed for efficient fluid distribution, this threaded distribution manifold is engineered to facilitate optimal water separation. Its robust construction allows for reliable performance, ensuring that the system operates smoothly without leaks or failures. The threaded connections provide ease of installation and compatibility with a wide range of piping systems, making it a versatile choice for various plumbing and water management needs.
3. The combination of stainless steel 304 and nickel plating not only contributes to the aesthetic appeal of the manifold but also enhances its functionality. This water separator is ideal for applications where cleanliness and hygiene are paramount, as stainless steel is easy to clean and maintain. Overall, this durable and efficient distribution manifold is an excellent investment for anyone seeking a reliable solution for water separation and distribution in their systems.
