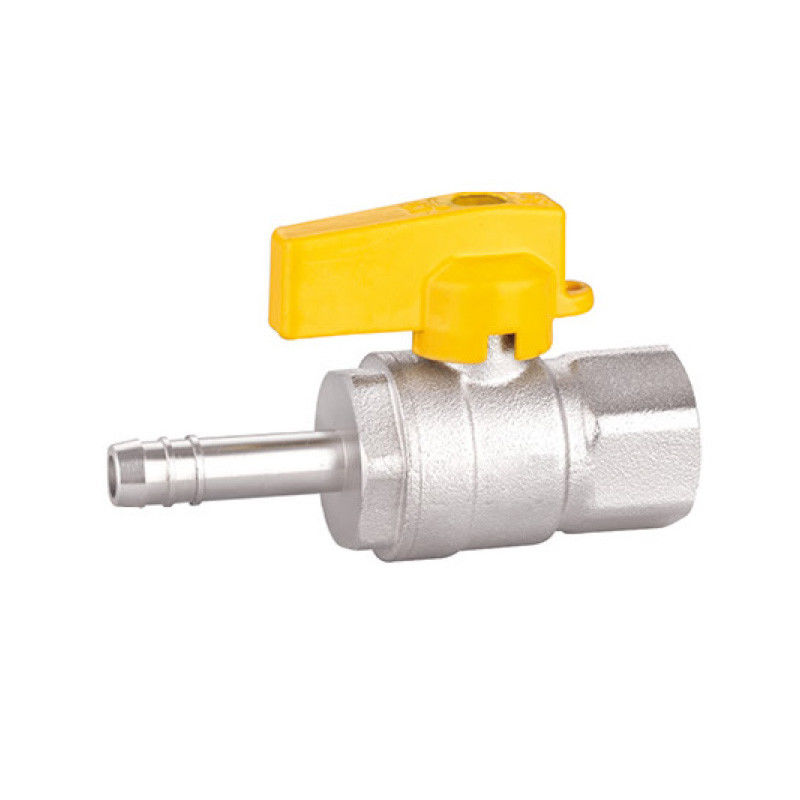

Gas Brass Threaded Ball Valve Male X Hose Connector PTFE Ball Valve

Product Details

Place of Origin: Zhejiang Taizhou

Brand Name: Taizhou XingNuo

Model Number: AV1029-F

Payment & Shipping Terms

Minimum Order Quantity: 3000Pcs

Packaging Details: Xingnuo Package

Payment Terms: T/T

Get Best Price
Product Details
High Light:

Gas Brass Threaded Ball Valve

,

Brass Threaded Ball Valve Male

,

Hose Connector PTFE Ball Valve

Stem Material:
Brass
Nominal Pressure:
Max.8bar
Working Temperature:
-10~100°C
Threaded:
ISO228/1
Processing Technic:
Sand Blast And Nickel Plate
Test:
100%leak Tested
Handle Material:
Aluminium
Brass Material:
HPB57-3
Seal Material:
PTFE
Size:
1/2"x9,1/2"x9.5,1/2"x10,1/2"x10.5,1/2"x11.8,1/2"x14,1/2"x15
Stem Material:
Brass
Nominal Pressure:
Max.8bar
Working Temperature:
-10~100°C
Threaded:
ISO228/1
Processing Technic:
Sand Blast And Nickel Plate
Test:
100%leak Tested
Handle Material:
Aluminium
Brass Material:
HPB57-3
Seal Material:
PTFE
Size:
1/2"x9,1/2"x9.5,1/2"x10,1/2"x10.5,1/2"x11.8,1/2"x14,1/2"x15
Product Description



Brass Gas  AV1029-F Male X Hose Connector PTFE Seal Valve



Specification

  • ​forged brass body
  • sand blast and nickel plated
  • nominal pressure:Max.8bar(116psi)
  • temperature:-10~100°C(14~212°F)
  • threaded  ISO228/1
  • 100% leak tested



Technical Specification

Gas Brass Threaded Ball Valve Male X Hose Connector PTFE Ball Valve 0

Dimensions



SIZE

A B C D E                   F
1/4"M x 9

66.5

9 29 33 9 25

1/2"M x 9

76 9 38 43 15 25
1/2"M x 9.5 76 9.5 38

43

15 25
1/2" M x 10 84 10 38 43 15 33
1/2"M x 10.5 84 10.5 38 43 15 33
1/2" M x 11.8 84 11.8 38 43 15 33
1/2" M x 14 95.5 14 38 43 15 44.5
1/2"M x15 95.5 15 38 43 15 44.5



Product Details

  • Brass Valve Body: High-density forging, no blister, no air holes, no leakages. Made by special high precision CNC machines.

  • Brass Bonnet: High-density forging, no blister, no air holes, no leakages. Made by special high precision CNC machines.

  • Ball Valve: Smooth and wear resisting, with good sealing performance.

  • Brass Valve Stem: Made of hot rolled brass, high tensile strength, good toughness, long-term use without deformation, fracture.

  • Handle: The handle is made of aluminium alloy by casting, professional surface painting, wear resisting and with anti-corrosion. Small appearance, flexible opening and closing when installed in various environments.

  • Ball Seat: Made by pure PTFE(polytetrafluoroethylene), with high elasticity and wear resistance, is not easy aging.

  • Stainless Steel Lock screw: Internal design of anti-loose, can be used for long time.

  • O-ring: made of imported raw material,special for gas, small friction coefficient, long service life and not easy to leak.





Reminding

  1. The thread, color of handle, materials, etc. can be customized.
  2. Female x Female Brass Gas Ball Valve with Aluminium handle.
  3. Ball valves in yellow handle can be only used in all types of gas, town gas (1st famlily), natural gas (2nd family), and liquid gas (3rd family). They are not allowed to be used in any water and air systems.



Certificates of AV 1029-M















Brass Gas Ball Valve series

  • Gas valve is a new type of safety equipment for gas pipeline engineering; It is used to cut off, connect and regulate the gas in the pipeline, with good control characteristics and sealing performance; It is suitable for city gas, liquefied petroleum gas, natural gas, oxygen and other gas medium pipelines.

  • Gas valves are widely used in gas medium pipelines such as gas, liquefied petroleum gas, natural gas, oxygen, etc. in urban gas supply pipe network systems; The drive forms include manual, worm gear drive, electric, pneumatic, hydraulic, electro-hydraulic linkage and other actuators, which can realize remote control and automatic operation.



Compant Profiles

        Taizhou Xingnuo Technology Co., Ltd., formerly known as Yuhuan precision machinery factory, was founded in 1992 with a registered capital of 14.53 million yuan and an area of 13000 square meters. Since its establishment, the company has been engaged in the development and production of brass. The company has accumulated rich production experience It has created a group of professional technicians and established a complete set of product quality assurance system. The company has become a professional manufacturer integrating design, development and production.
      The company mainly produces more than a thousand varieties of water separators, valve series, embedded pipe fittings series, heating radiator series, HVAC and other series, mainly made of brass and stainless steel. It has more than 800 sets of production equipment and more than 50 sets of testing equipment and other professional development and production of casting finishing equipment.
      Xingnuo regards product quality as the life of the enterprise, and earnestly implements the quality policy of "pragmatic, precise manufacturing, continuous improvement and customer satisfaction", Modern quality management methods and standardized testing procedures are adopted to ensure reliable quality. Xingnuo has a design studio, a laboratory center and a testing center. Our products are exported to Russia, the United States, Germany, Australia, Canada and other countries and regions, and have formed regional and long-term cooperation with many domestic listed companies and distributors. We are your reliable business partner.

Gas Brass Threaded Ball Valve Male X Hose Connector PTFE Ball Valve 1











Packaging Details

SIZE Weight(g) Inner Box(mm) Carton(mm)

Qty per

inner box

Qty per

carton

1/4"M x 9 91 19x8x6 31x20x17 6 60
1/2"M x 9 194 19x8x6 31x20x17 6 60
1/2"M x 9.5 194 19x10x6 31x21x20 6 60
1/2"M x 10 197 19x10x6 31x21x20 6 60
1/2"M x 10.5 197 19x10x6 31x21x20 6 60
1/2"M x 11.8 198 19x10x6 31x21x20 6 60
1/2"M x 14 206 19x10x6 31x21x20 6 60
1/2"M x 15 207 19x11x6 31x23x20 6 60
