Product Details
Place of Origin: TaiZhou ZheJiang
Brand Name: jm
Model Number: PF5003
Payment & Shipping Terms
Minimum Order Quantity: 5000PCS
Delivery Time: 30days
Supply Ability: 10000000
Name: |
Brass Compression Fittings |
Material:: |
Brass |
Size :: |
16X20x20,20X26x26 |
Nominal Pressure:: |
Max 25 Bar |
Temperature:: |
-10-100 |
Threaded F/F: |
ISO 228/1 |
Packing: |
Carton / Pallet |
Name: |
Brass Compression Fittings |
Material:: |
Brass |
Size :: |
16X20x20,20X26x26 |
Nominal Pressure:: |
Max 25 Bar |
Temperature:: |
-10-100 |
Threaded F/F: |
ISO 228/1 |
Packing: |
Carton / Pallet |

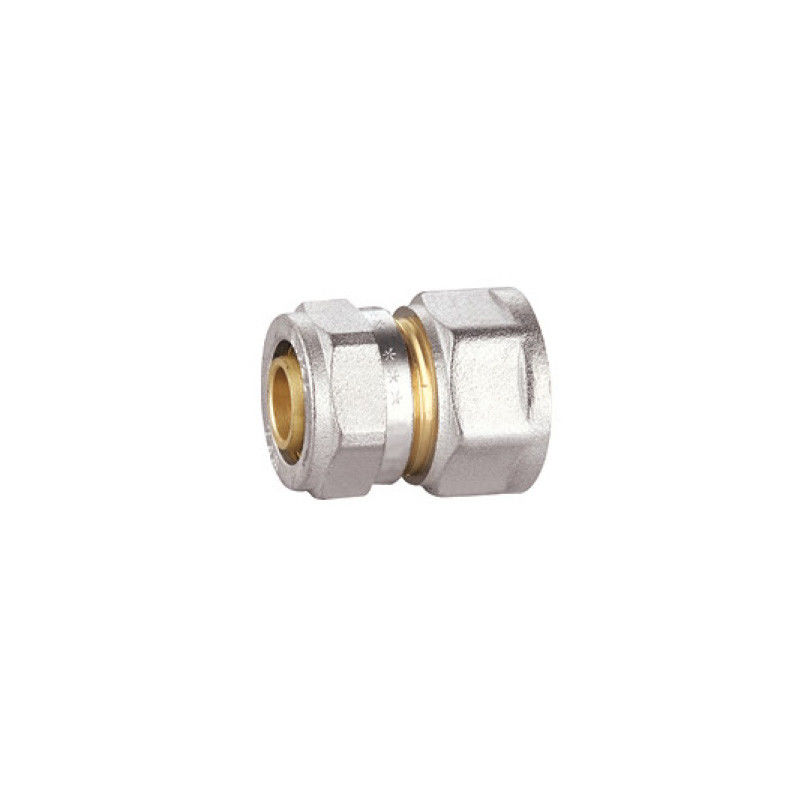

Brass Pex-Al-Pex Fitting Equal Straight Union PF5003 Size 16x1/2"-32x1 1/4" Forged Brass Body
Dimensions and Packaging
SIZE | A | B | Weight(g) | Carton(mm) | Qty percarton |
16x1/2" | 34.5 | 8 | 67 | 33x23x15 | 210 |
16x3/4" | 40.5 | 8 | 100 | 33x23x15 | 150 |
20x3/4" | 40 | 12 | 126 | 33x23x15 | 150 |
32x1 1/4" | 53.5 | 19.5 | 340 | 33x23x15 | 60 |
