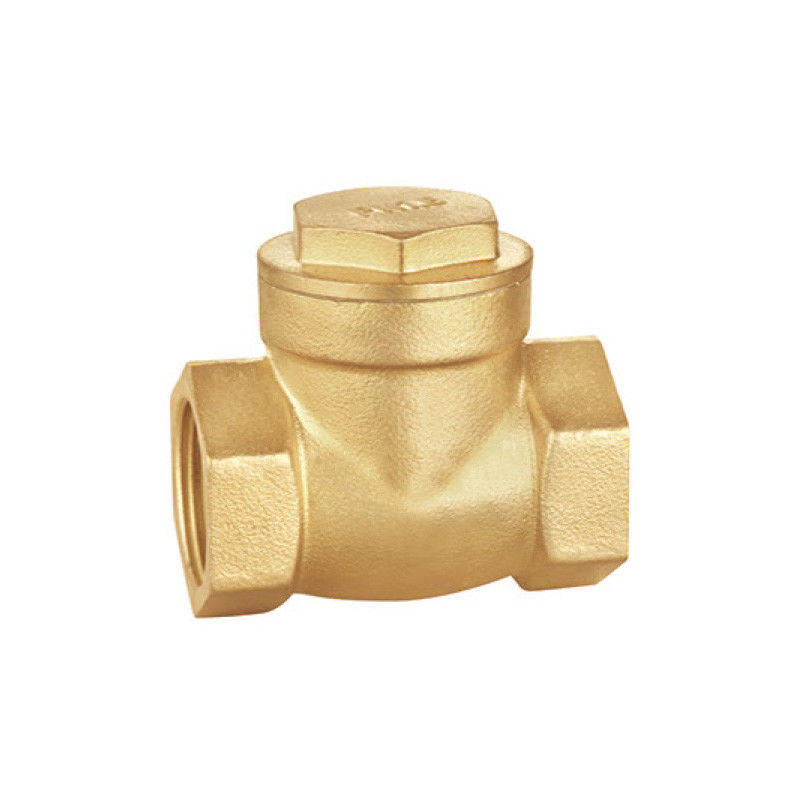

Customized 1/2 Inch Brass Check Valve Nickel Plated Pressure Max25bar

Product Details

Place of Origin: TAIZHOU ZHEJIANG

Brand Name: JM

Model Number: CV5006

Payment & Shipping Terms

Minimum Order Quantity: 3000

Get Best Price
Product Details
High Light:

Customized Brass Check Valve

,

1/2 Inch Brass Check Valve

,

1/2 Inch Check Valve Nickel Plated

Name:
Brass Check Valve
Material:
Brass
Pressure:
Max25bar
Temperature Of Media:
-10-110
Inch Size:
1/2" 3/4" 1" 1 1/4" 1 1/2" 2" 2 1/2" 3" 4"
OEM:
Customized
Name:
Brass Check Valve
Material:
Brass
Pressure:
Max25bar
Temperature Of Media:
-10-110
Inch Size:
1/2" 3/4" 1" 1 1/4" 1 1/2" 2" 2 1/2" 3" 4"
OEM:
Customized
Product Description
Brass Check Valve CV5006 Nominal Pressure:Max25bar,Temperature:-10-110 Threaded F/F ISO228/1


Specification
  • Forged brass boby

  • Sand blast and nickel plated

  • Nominal Pressure:Max.16bar

  • Temperature:-10°C~110°C

  • Threaded ISO228/1

  • 100% leak tested

Dimensions
SIZEACD
1/2"4530.513
3/4"50.235.517
1"584122
1 1/4"68.848.529
1 1/2"537534
2"916446
2 1/2"11379.557
3"1229165
4"158111.586
packaging
SIZEWeight(g)Inner Box(mm)Carton(mm)

Qty per inner box

Qty per carton
1/2"12519.5×10×527×21×31.512180
3/4"18119×9.5×6.534×20.5×20.5990
1"28519×9.5×6.534×20.5×20.5660
1 1/4"42221.5×13.5×7.539×22×28.5660
1 1/2"54516.5×13×841.5×18×27.5440
2"115021.5×11×7.539×22×34.5230
2 1/2"200013.5×1×13.632×26×33.5180
3"230030×15×12.531×15.5×26.536
4”430019×16.5×12.543.5×37.5×2016
