AV3033 1/2 Inch Brass Angle Valve Threaded Max.16bar Pressure

Product Details

Payment & Shipping Terms

Get Best Price
Product Details
High Light:

1/2 Inch Brass Angle Valve

,

Brass Angle Valve Max.16bar

,

1/2 Inch Angle Valve Threaded

Name:
1/2 Inch Angle Valve
Material:
Brass
Pressure:
Max.16bar
Normal Temperature:
-10~110°C
Processing Technic:
Sand Blast And Nickel Plated
Threaded:
M/M ISO228/1
Name:
1/2 Inch Angle Valve
Material:
Brass
Pressure:
Max.16bar
Normal Temperature:
-10~110°C
Processing Technic:
Sand Blast And Nickel Plated
Threaded:
M/M ISO228/1
Product Description

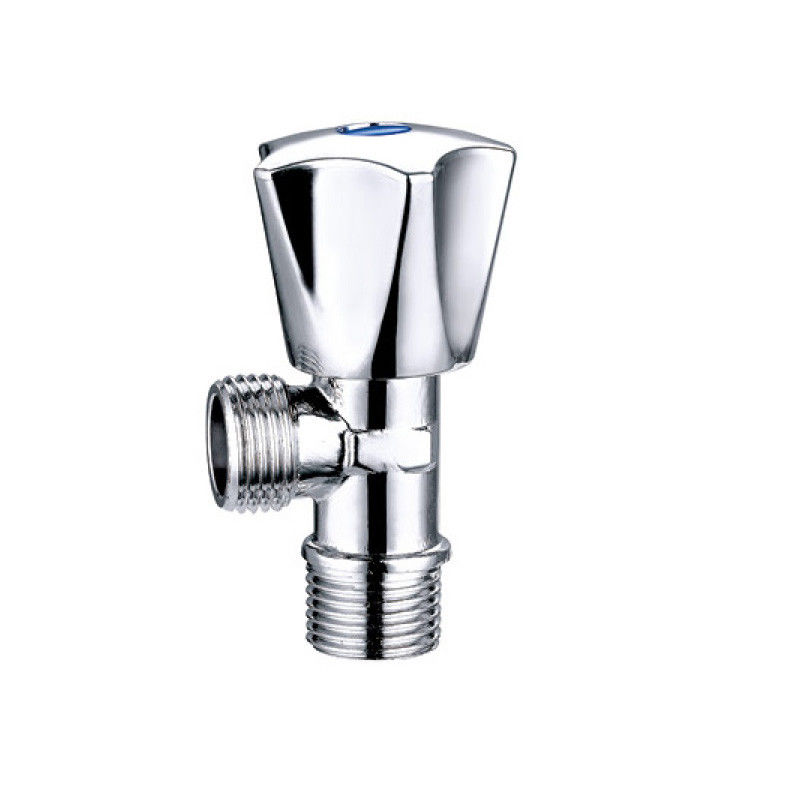

Brass Angle Valve AV3033
Specification
  • Forged brass boby

  • Sand blast and nickel plated

  • Nominal Pressure:Max.16bar

  • Temperature:-10°C~110°C

  • Threaded ISO228/1

  • 100% leak tested

  •

Dimensions
SIZE A B C D E
1/2"×1/2” 24.5 36.5 42.5 34 8
packaging
SIZE Weight(g) Inner Box(mm) Carton(mm)

Qty per inner box

Qty per carton
1/2"×1/2” 112 18×10.5×7.5 39×22.5×18.5 10 100
