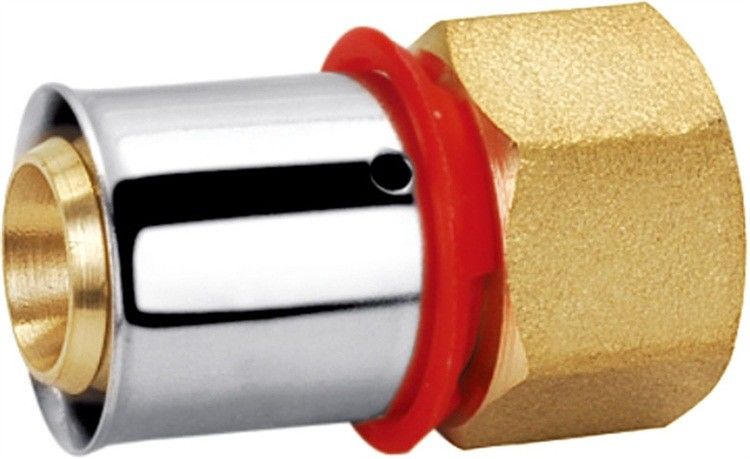

Custom Brass Compression Fittings Female Straight Union Fitting

Product Details

Place of Origin: TaiZhou ZheJiang

Brand Name: jm

Model Number: PF3002

Payment & Shipping Terms

Minimum Order Quantity: 5000PCS

Delivery Time: 30days

Supply Ability: 10000000

Get Best Price
Product Details
High Light:

Custom Brass Compression Fittings

,

Female Brass Compression Fittings

,

Female Straight Union Fitting

Name:
Compression Straight Connector
Size:
16X16,20X20,26X26,32X32
Temperature:
-10-100
Material:
Brass
Threaded F/F:
ISO 228/1
Nominal Pressure:
Max 25 Bar
Transport Package:
Carton Box/Pallets
Name:
Compression Straight Connector
Size:
16X16,20X20,26X26,32X32
Temperature:
-10-100
Material:
Brass
Threaded F/F:
ISO 228/1
Nominal Pressure:
Max 25 Bar
Transport Package:
Carton Box/Pallets
Product Description



Brass Fitting PF3002 for Female Straight Union Gasket PTFE







Dimensions and Packaging

SIZE A B Weight(g) Carton(mm) Qty per carton
16X1/2" 50 7.5 58 33X23X18 210
16x3/4" 51 7.5 86 33X23X18 200
20x1/2" 50 11.2 69 33X23X18 200
20x3/4" 51 11.2 93 33X23X18 200
26x3/4" 51 14.5 101 33X23X18 200
26x1 54.5 14.5 133 33X23X18 150
32X1" 54.5 20 150 33X23X18 120
32x1 1/4" 55 20 200 33X23X18 80
