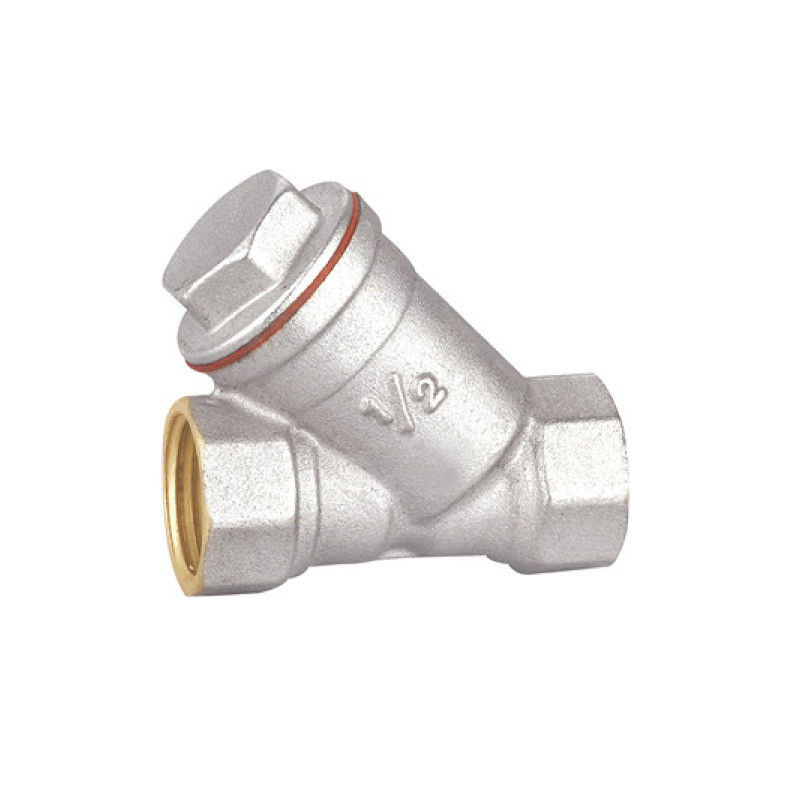

BSP NPT Brass Y Strainer Valve Threaded ISO228/1 100% Leak Tested
Product Details:
| Brand Name: | jm |
| Model Number: | FT1001 |
|
Detail Information |
|||
| Name: | Brass Water Strainer | Material: | Brass |
|---|---|---|---|
| Pressure: | Max 25bar | Temperature: | -10-110 |
| Teachnolgy: | Forged | Surface: | Nickel |
| High Light: | BSP Brass Y Strainer Valve,NPT Brass Strainer Valve,Threaded Brass Strainer Valve |
||
Product Description
Brass Filter Valve FT1001 Sand Blast Nominal Pressure:Max 25bar Threaed F/F ISO 228/1
Specification
-
Forged brass boby
-
Sand blast and nickel plated
-
Nominal Pressure:Max.16bar
-
Temperature:-10°C~110°C
-
Threaded ISO228/1
-
100% leak tested
Dimensions
| SIZE | A | C | D |
| 1/2" | 55 | 34 | 17 |
| 3/4" | 66 | 38 | 20 |
| 1" | 77 | 41 | 26.5 |
| 1 1/4" | 86 | 54 | 33.5 |
| 1 1/2" | 99 | 59.5 | 41 |
| 2" | 115 | 76 | 48 |
packaging
| SIZE | Weight(g) | Carton(mm) | Qty per cartoon |
| 1/2" | 130 | 33×23×18 | 160 |
| 3/4" | 200 | 33×23×18 | 100 |
| 1" | 270 | 36×25×19.5 | 80 |
| 1 1/4" | 565 | 33×23×18 | 28 |
| 1 1/2" | 728 | 33×23×18 | 21 |
| 2" | 1355 | 33×23×18 | 10 |
Want to Know more details about this product
