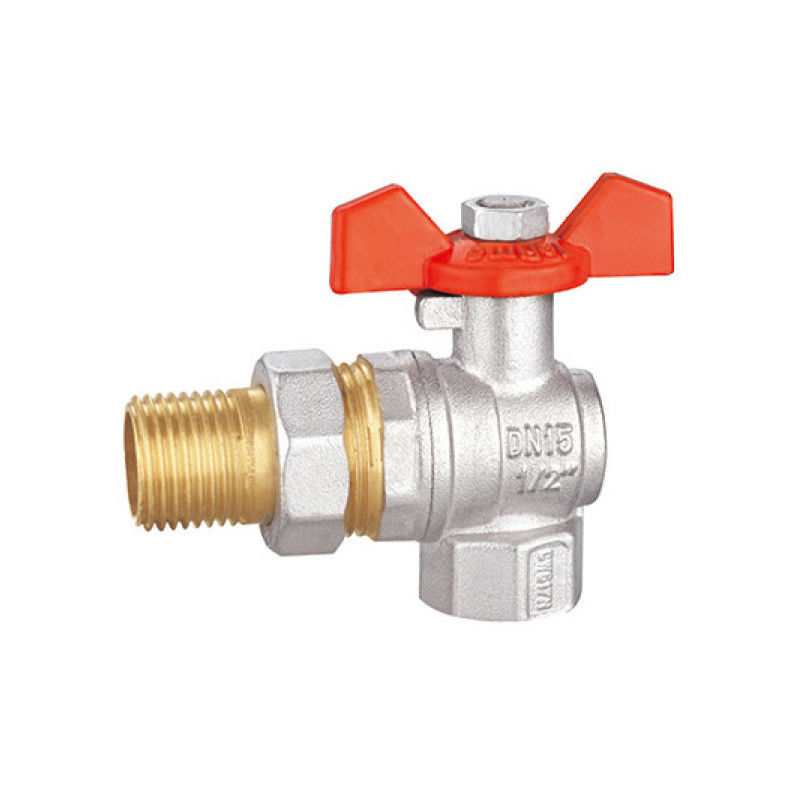

Nickel Plated 1/2 Angle Valve Forged Brass Water Angle Valve
Product Details:
Get Best Price Contact Now|
Detail Information |
|||
| Name: | Water Angle Valve | Nominal Pressure: | Max.25bar |
|---|---|---|---|
| Processing Technic: | Sand Blast And Nickel Plated | Working Temperature: | -10~120°C（14～248°F） |
| Threaded: | ISO228/1 | Handle Material: | Aluminium |
| High Light: | Nickel Plated 1/2 Angle Valve Forged,1/2 Angle Valve,Brass Water Angle Valve |
||
Product Description
Brass Angle Valve AV1011-MF
Specification
-
Forged brass boby
-
Sand blast and nickel plated
-
Nominal Pressure:Max.16bar
-
Temperature:-10°C~110°C
-
Threaded ISO228/1
-
100% leak tested
-
Dimensions
| SIZE | A | B | C | D | E |
| 1/2"×1/2" | 54 | 25.5 | 42 | 50 | 13.5 |
| 3/4"×3/4” | 63 | 32.5 | 47 | 50 | 19 |
packaging
| SIZE | Weight(g) | Inner Box(mm) | Qty per carton |
| 1/2"×1/2" | 198 |
34×31.5×22.5 |
120 |
| 3/4"×3/4” | 360 | 39×27.5×27 | 72 |
Want to Know more details about this product
