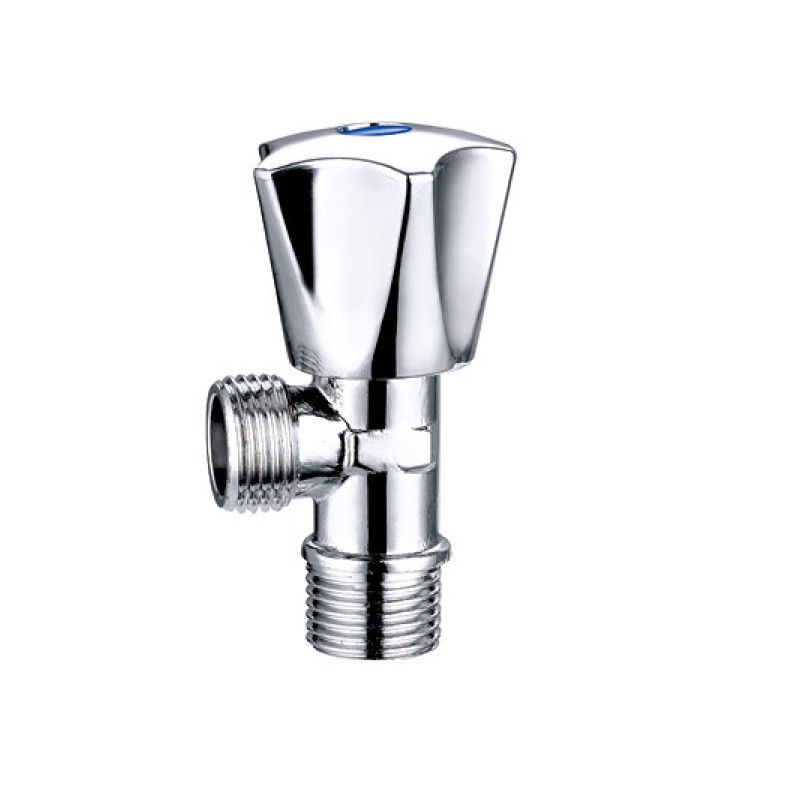

Forged Bathroom Brass Angle Valve Sand Blast Nickel Plated AV3033
Product Details:
| Place of Origin: | Zhejiang Taizhou |
| Brand Name: | Taizhou XingNuo |
| Model Number: | AV3033 |
|
Detail Information |
|||
| Material: | Brass | Pressure: | Max.25bar |
|---|---|---|---|
| Normal Temperature: | -10~110°C | Threaded: | M/M ISO228/1 |
| Processing Technic: | Sand Blast And Nickel Plated | Usage: | Bathroom / Toilet / Wash Basin / Kitchen Sink |
| High Light: | Forged Brass Angle Valve,Bathroom Brass Angle Valve,Bathroom Angle Valve Sand Blast |
||
Product Description
BRASS Angle Valve AV3033 Forged Brass Body Sand Blast Nickel Plated Nominal Pressure:Max 25bar
Dimensions
|
SIZE |
A | B | C | D | E |
| 1/2"x1/2" | 24 | 36 | 38 | 43 | 15 |
|
3/4"x1/2" |
27.5 | 38 | 40.5 | 43 | 18 |
| 3/4"x3/4" | 28 | 38 | 40.5 |
43 |
18 |
Packaging
| SIZE | Weight(g) | Inner Box(mm) | Carton(mm) |
Qty per inner box |
Qty per carton |
| 1/2"x1/2" | 190 | 18.5x18x6 | 37x25x19.5 | 10 | 80 |
| 3/4"x1/2" | 258 | 18.5x18x6 | 37x25x19.5 | 10 | 80 |
| 3/4"x3/4" | 257 | 18.5x18x6 | 37x25x19.5 | 10 | 80 |
Specification
- forged brass body
- sand blast and nickel plated
- nominal pressure:Max.25bar
- temperature:-10~100°C
- threaded F/F ISO228/1
- 100% leak tested
