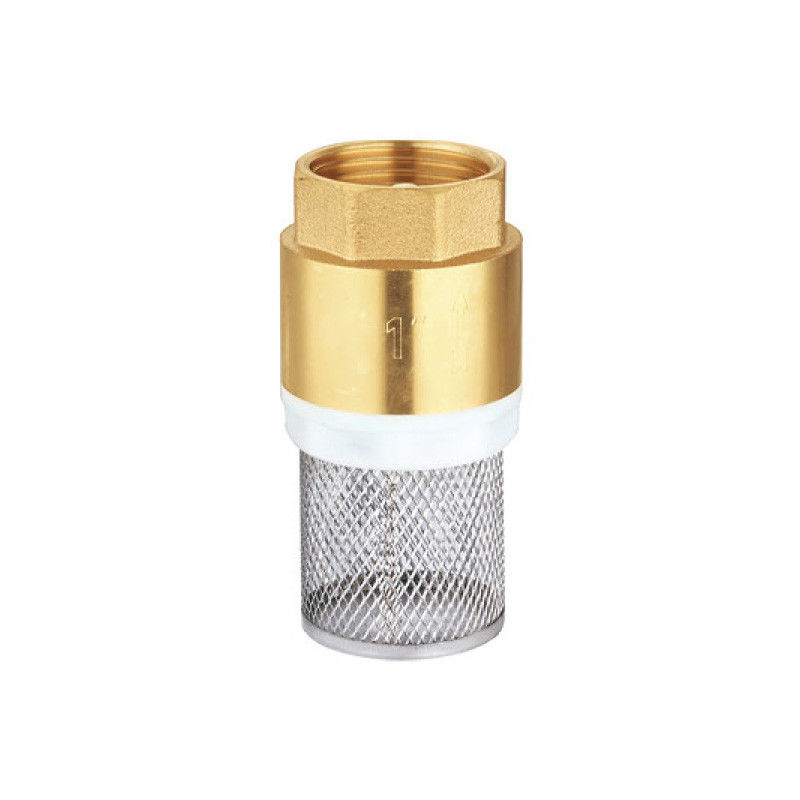

Forged Water Brass Check Valve Threaded Nickel Plated CV5004
Product Details:
| Place of Origin: | TAIZHOU ZHEJIANG |
| Brand Name: | JM |
| Model Number: | CV5004 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3000PCS |
|---|---|
| Delivery Time: | 30-40 |
|
Detail Information |
|||
| Name: | Brass Check Valve | Materical: | BRASS |
|---|---|---|---|
| Media: | Water | Pressure: | Medium Pressure |
| Structure: | Check, Control, Ball | Packing: | Carton/pallet |
| High Light: | Forged Brass Check Valve,Brass Check Valve Threaded,Water Check Valve Nickel Plated |
||
Product Description
Brass Check Valve CV5004 Nominal Pressure:max25bar Temperature:-10-110
Specification
-
Forged brass boby
-
Sand blast and nickel plated
-
Nominal Pressure:Max.16bar
-
Temperature:-10°C~110°C
-
Threaded ISO228/1
-
100% leak tested
Dimensions
| SIZE | A | C |
| 1/2" | 66 | 31.9 |
| 3/4" | 78 | 38.9 |
| 1" | 85.5 | 42 |
| 1 1/4" | 101 | 57.6 |
| 1 1/2" | 118.5 | 64.5 |
| 2" | 128 | 78.7 |
| 2 1/2" | 154.4 | 97 |
| 3" | 171 | 111 |
| 4" | 184.5 | 140.4 |
packaging
| SIZE | Weight(g) | Inner Box(mm) | Carton(mm) |
Qty per inner box |
Qty per carton |
| 1/2" | 59 | 21.5×13.5×7.5 | 40×22×28.5 | 26 | 260 |
| 3/4" | 90 | 21.5×13.5×7.5 | 40×22×28.5 | 15 | 150 |
| 1" | 119 | 22×14×8.5 | 44×23.5×29 | 12 | 120 |
| 1 1/4" | 235 | 30.5×10.7×10.7 | 56×32×23.5 | 9 | 90 |
| 1 1/2" | 302 | 21.5×13.5×7.5 | 42×22.5×39 | 3 | 45 |
| 2" | 462 | 22×14×8.5 | 22×23.5×29 | 3 | 30 |
| 2 1/2" | 950 | 33×23×12 | 47.5×34×36.5 | 4 | 20 |
| 3" | 1224 | 35×20×14.5 | 40×35×29 | 3 | 12 |
|
4” |
1916 | 35×20×14.5 | 40×35×29 | 2 | 8 |
