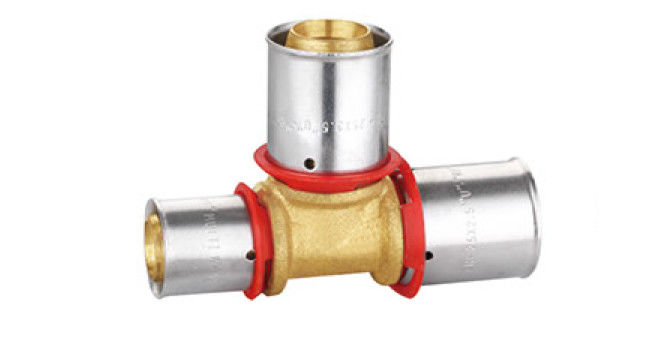

Nickel Plated Brass Compression Valve , Compression Reducing Tee Fittings PF3008
Product Details:
| Place of Origin: | Zhejiang Taizhou |
| Brand Name: | Taizhou XingNuo |
| Model Number: | PF3008 |
|
Detail Information |
|||
| Name: | Brass Compression Pipe Fittings | Material: | Brass |
|---|---|---|---|
| Pressure: | Max.25bar | Normal Temperature: | -10~110°C |
| Threaded: | ISO228/1 | Processing Technic: | Sand Blast And Nickel Plated |
| Test: | 100％leak Tested | ||
| High Light: | Nickel Plated Brass Compression Valve,Brass Reducing Tee Fittings,Brass Compression Reducing Tee |
||
Product Description
BRASS Compression Valve Reducing Tee
Dimensions
|
SIZE |
A | B | C | D | E |
| 1/2"x1/2" | 24 | 36 | 38 | 43 | 15 |
|
3/4"x1/2" |
27.5 | 38 | 40.5 | 43 | 18 |
| 3/4"x3/4" | 28 | 38 | 40.5 |
43 |
18 |
Packaging
| SIZE | Weight(g) | Inner Box(mm) | Carton(mm) |
Qty per inner box |
Qty per carton |
| 1/2"x1/2" | 190 | 18.5x18x6 | 37x25x19.5 | 10 | 80 |
| 3/4"x1/2" | 258 | 18.5x18x6 | 37x25x19.5 | 10 | 80 |
| 3/4"x3/4" | 257 | 18.5x18x6 | 37x25x19.5 | 10 | 80 |
Specification
- forged brass body
- sand blast and nickel plated
- nominal pressure:Max.25bar
- temperature:-10~100°C
- threaded F/F ISO228/1
- 100% leak tested
